A backyard slope or eroding garden bed can quietly undermine your landscape over time, and fixing it requires more than just stacking some blocks.
Learning how to build a retaining wall the right way means understanding what happens beneath the surface: soil pressure, water movement, and structural load working together against your wall every single day.
Get one element wrong, and even a good-looking wall can shift, crack, or collapse within a season. Here’s the right way to do it, for a lasting build that stays ages.
How Do You Plan the Wall Before Digging?
A retaining wall around 3 to 4 feet tall is where you should start checking local rules before building. Many areas require permits or engineered plans once a wall reaches this height.
Before digging, look at the slope, soil conditions, and the actual height difference you need the wall to handle. A wall built on a slope can end up much taller than it first appears.
Mark the wall location and check for underground utilities before you start excavating. In the US, call 811 before digging so utility companies can mark buried lines like gas, water, and electrical cables.
I’ve seen people skip this step because the wall seems like a simple weekend project, but hitting a buried line can turn it into a much bigger problem. It can be dangerous, interrupt service, and lead to expensive repairs.
Why Wall Height Determines Your Foundation Depth
Wall height also affects how deep the base needs to be. The 1/3 rule means about one-third of the wall’s total height should sit below ground.
That buried section helps the wall handle the pressure from the soil behind it. Taller walls push harder against the ground, so they need more support.
Before you start digging, measure the height difference, mark the wall path, and make sure your plan fits the site. Doing this early can save you from costly changes later.
How to Build a Retaining Wall: Step-By-Step Guide
Building a retaining wall at home is a step-by-step process. Each step ensures stability, proper drainage, and a wall that lasts for years.
Tools and Materials You’ll Need
Before you start retaining wall installation, gather the essential tools and materials. Each plays a key role in stability, alignment, or drainage, so skipping any of them can lead to problems later.
- Retaining wall blocks and concrete adhesive: Blocks provide structure; adhesive secures caps and corners.
- Crushed gravel or paver base with landscape fabric creates a level foundation and keeps soil from clogging drainage.
- Perforated 4-inch drain pipe: Directs water away to reduce pressure behind the wall.
- Level and string line: Ensure your wall and base are perfectly level and aligned.
- Tamper or mechanical plate compactor: Compresses gravel to prevent settling over time.
- Shovel and rubber mallet: Dig trenches, adjust block placement, and protect blocks while aligning.
- Hand level and rubber mallet: Help adjust blocks and keep each course aligned.
- Plate compactor: Compresses gravel and backfill to prevent settling.
- Concrete saw with diamond blade: Cuts cap blocks around corners and curves.

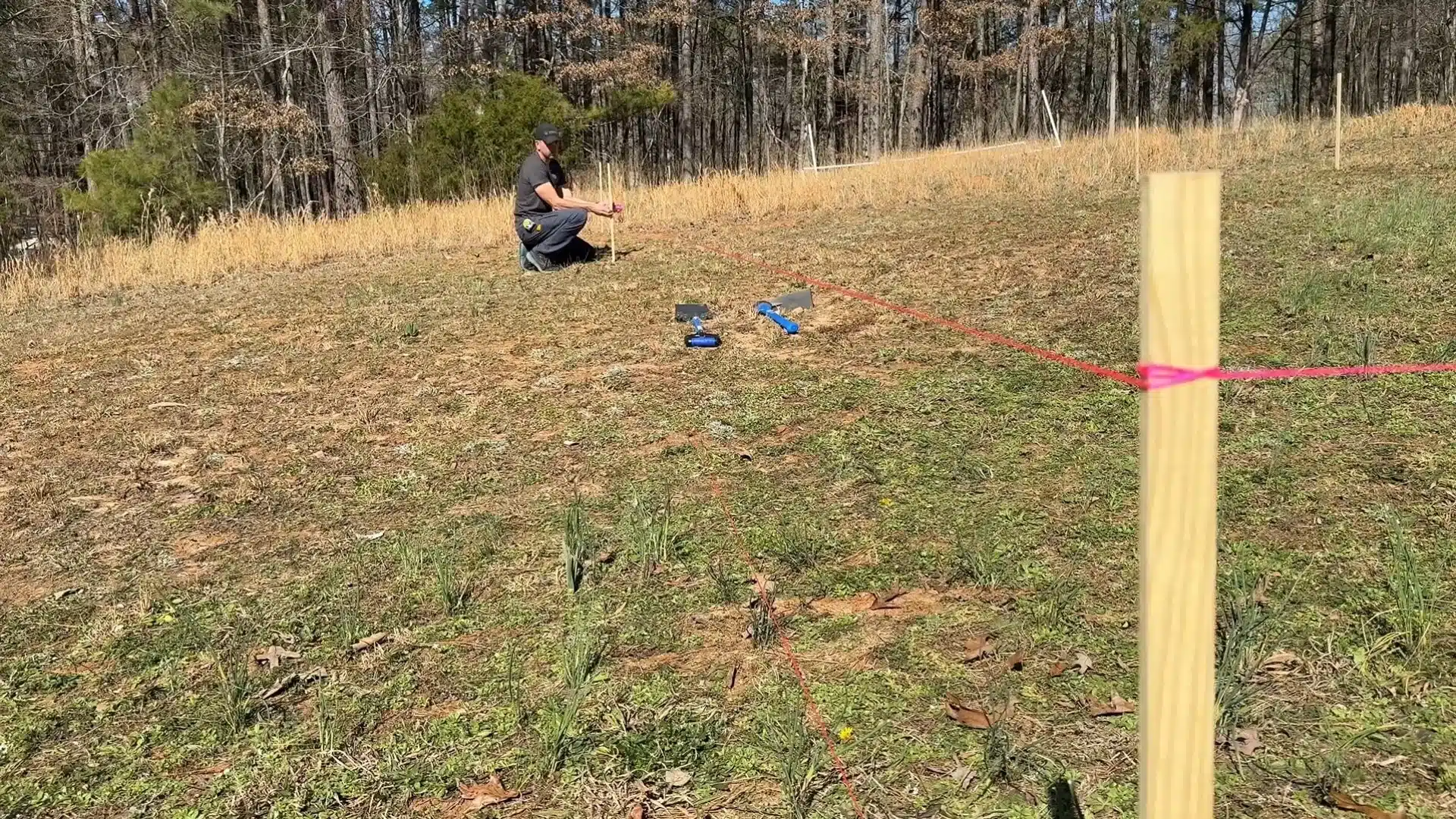

Step 1: Plan and Mark Your Wall Layout
Start by marking the wall location with stakes, string, and a line level. Create a level reference line around the area to measure height changes and plan your wall correctly.
Use marking paint to outline the trench area before digging. Check the lowest point along the wall and leave enough space behind it for drainage gravel and pipe.

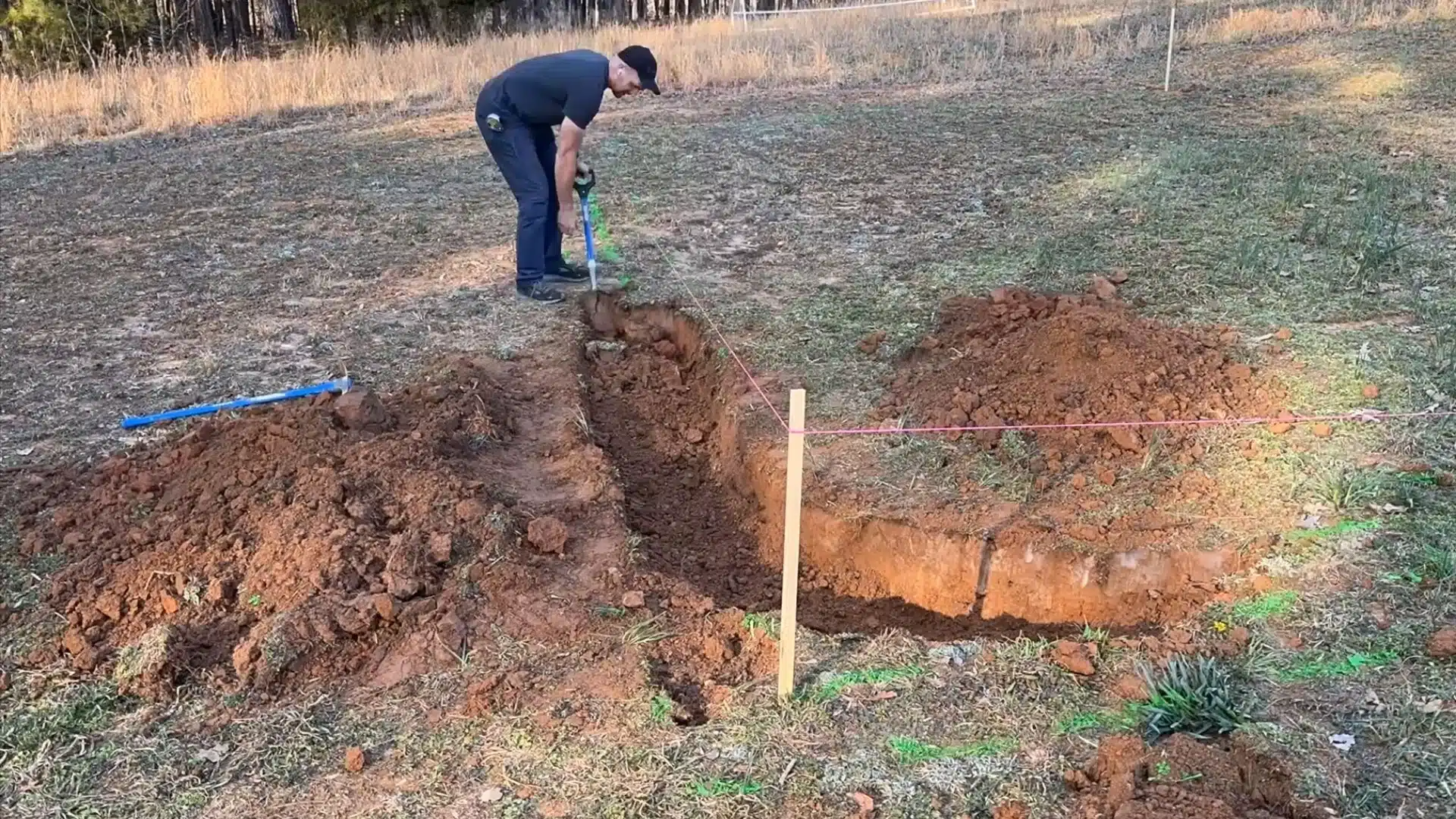

Step 2: Dig the Trench and Prepare the Base
Dig the trench where your first course of blocks will sit. Remove any loose soil and trim the bottom until you have a flat, stable surface.
Add your base gravel and compact it thoroughly before placing blocks. Avoid using sand because it can shift over time and will not provide the same support.

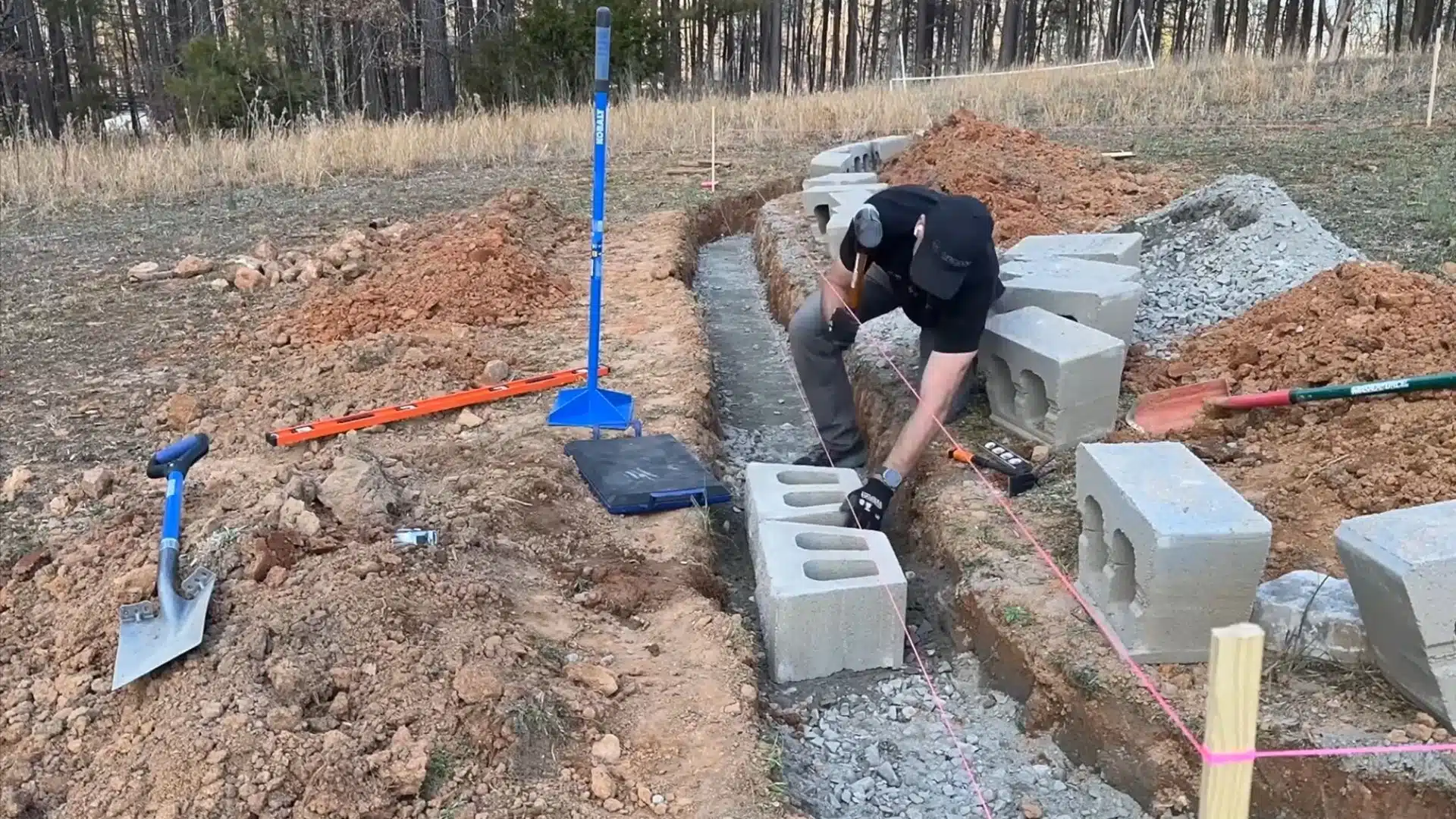

Step 3: Set the First Course of Blocks
Place the first row of blocks directly on the compacted gravel base. Check each block from front to back and side to side until it is fully level.
Take your time with this step because every course above depends on this row. Make small adjustments now instead of fixing problems later.

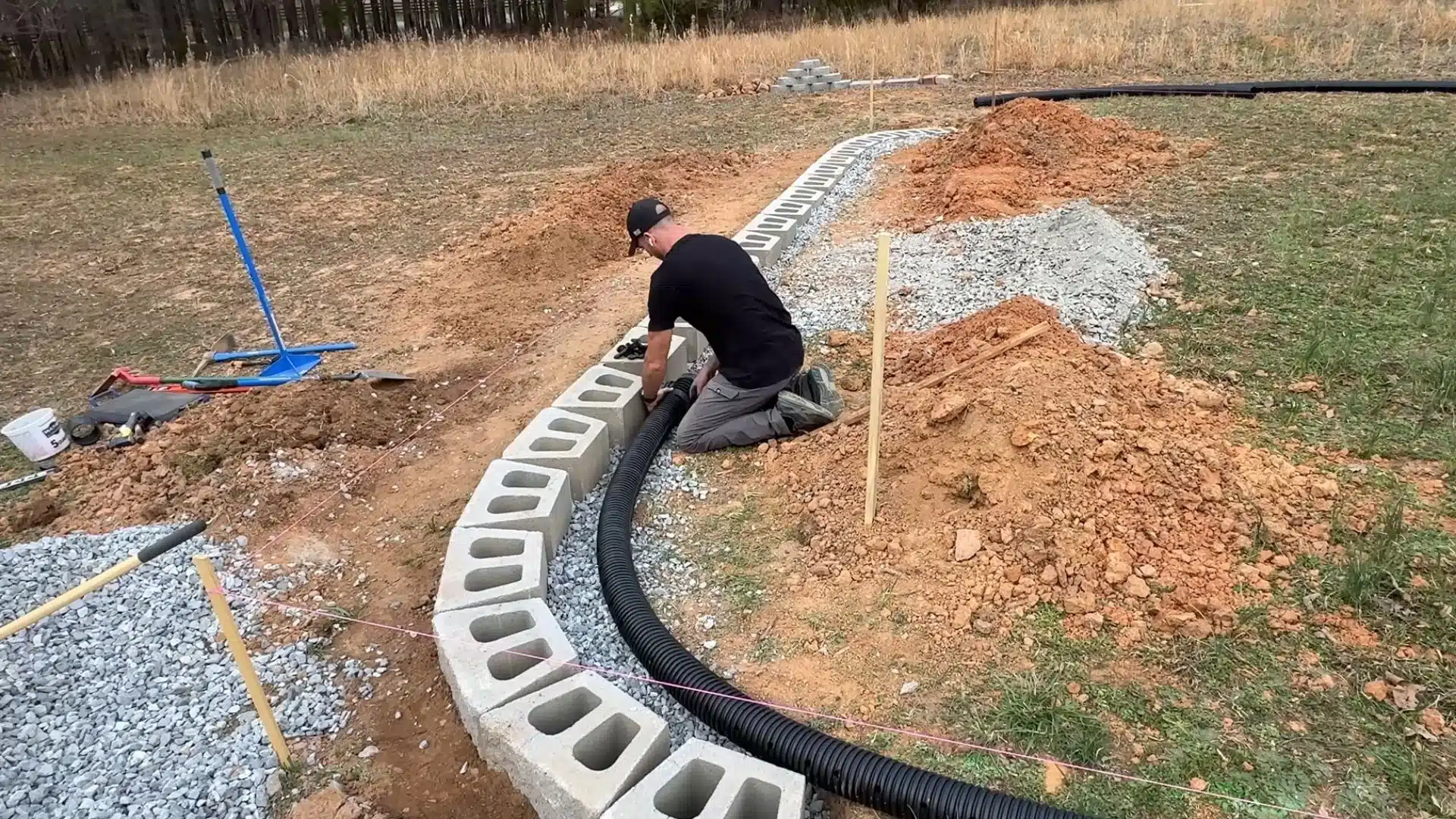

Step 4: Build Up the Wall and Add Drainage
Continue stacking blocks with staggered joints between each course. Keep checking alignment and maintain the built-in setback so the wall leans slightly into the soil.
Install the drainage pipe behind the wall as you build. Surround it with clean gravel and use landscape fabric to prevent soil from blocking water flow.

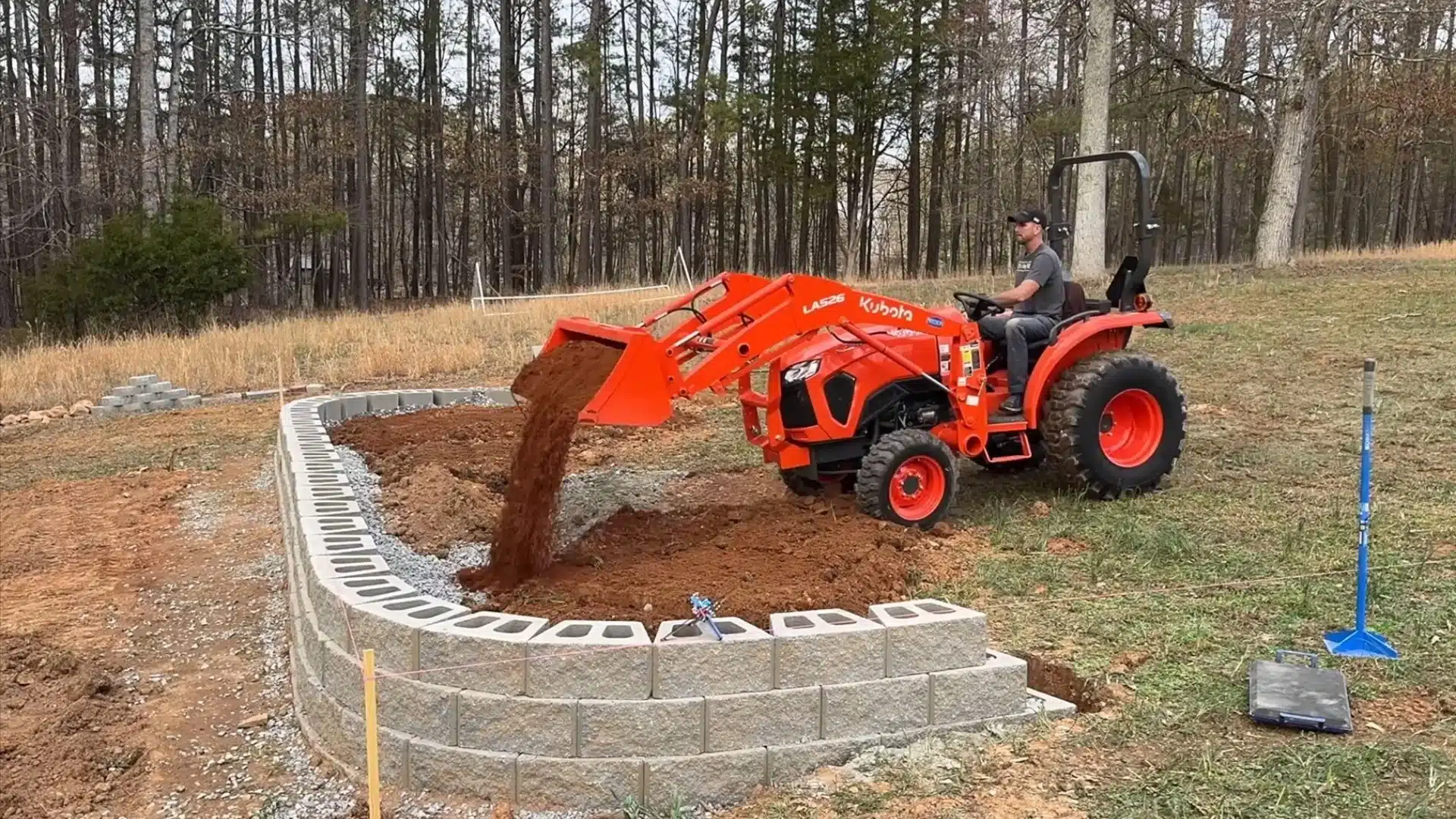

Step 5: Backfill and Compact Behind the Wall
Begin backfilling once the drainage system is installed and protected. Keep clean gravel directly behind the blocks before adding fill dirt to maintain proper drainage.
Add backfill in 6- to 8-inch layers and compact each layer before adding more soil. This helps prevent settling and reduces pressure on the wall.

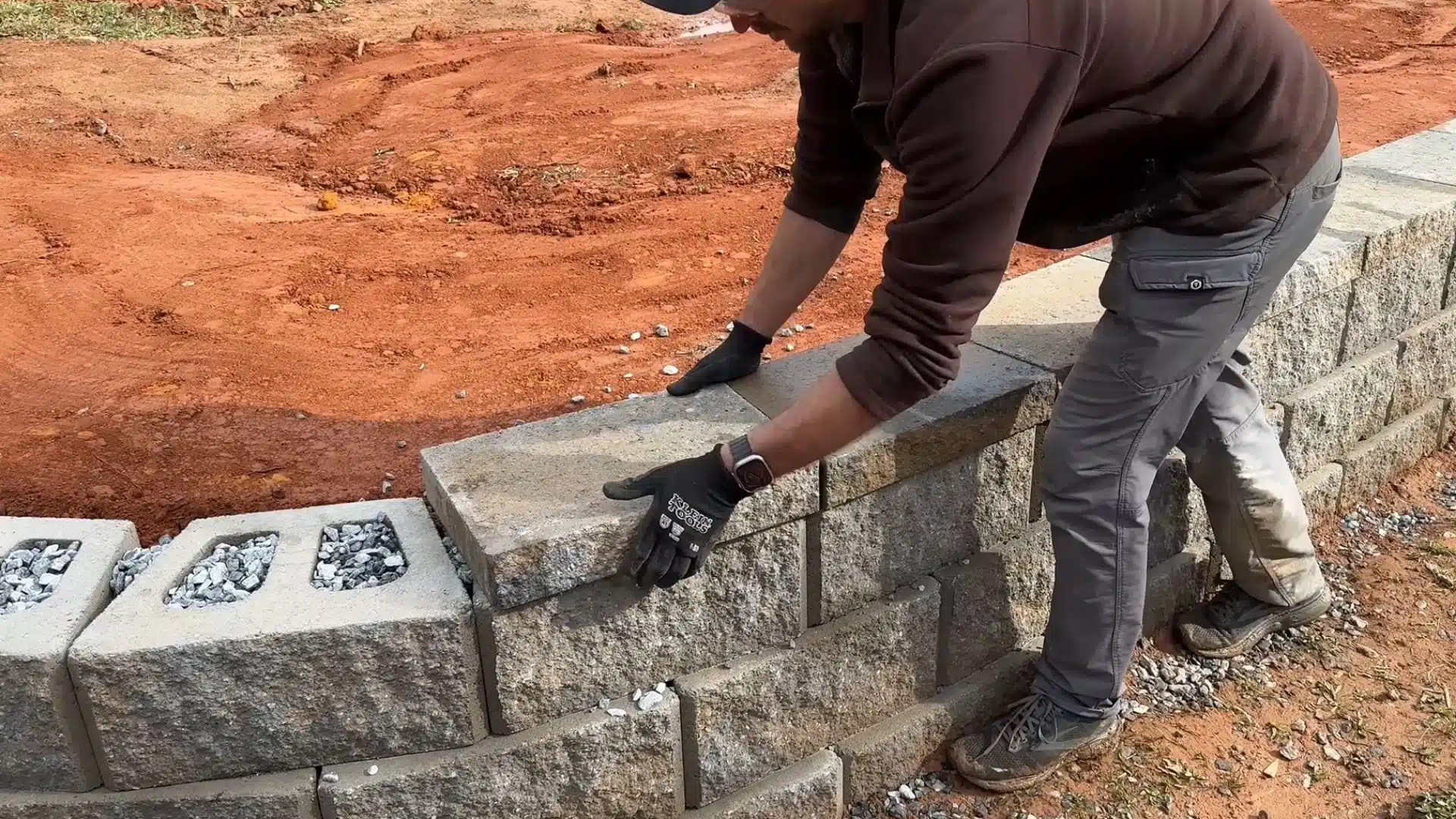

Step 6: Install Cap Blocks and Finish the Wall
Install cap blocks across the top of the wall and cut pieces where needed for corners or curves. Apply construction adhesive to secure the caps in place.
Finish by grading the soil behind the wall to direct water away from the structure. Proper drainage and a clean finish help the wall last longer.
For a deeper look at the whole thing, check out the video tutorial below:
Do You Need Geogrid for a Retaining Wall?
If you’re learning how to build a retaining wall with concrete blocks, geogrid is one of the parts you may need to understand for taller walls. It is mainly used for walls that hold back heavier soil pressure or reach heights where extra reinforcement is needed.
For many DIY projects, geogrid becomes something to check once a wall reaches around 3 to 4 feet, depending on local rules, soil conditions, and the block system you choose.
Geogrid is a strong mesh layer placed between block rows and extended back into the soil behind the wall. It helps connect the wall to the surrounding ground and reduces movement over time.
I’ve seen people focus mostly on stacking the blocks and overlook what happens behind them. The blocks create the visible wall, but the geogrid helps the entire structure handle the pressure pushing from the soil.
Proper Geogrid Installation and Placement
Install geogrid at the heights recommended by the block manufacturer. Lay it flat behind the blocks, extend it into the backfill area, and cover it with properly compacted soil.
The amount of geogrid needed depends on the wall height, soil type, slope, and block system. Steeper slopes and heavier soils usually require more reinforcement.
Geogrid does not replace a proper base or drainage system. A compacted foundation, level first course, and good water control are still necessary to keep a concrete block retaining wall stable.
Common Mistakes to Avoid
Avoiding a few common mistakes during retaining wall installation can make the difference between a stable wall and one that shifts, cracks, or fails over time.
- Skipping base preparation: Never place blocks directly on soil. A compacted gravel base creates stability and prevents the first course from settling or becoming uneven.
- Rushing the first course: The first row controls the entire wall. Check every block for level and alignment because mistakes here affect every course above.
- Ignoring drainage behind the wall: Water buildup creates pressure against the blocks. Install clean gravel and a perforated pipe to move water away from the wall.
- Using the wrong materials: Avoid landscape blocks or sand as a foundation. Use proper retaining wall blocks and crushed gravel designed for support and drainage.
- Backfilling too quickly: Add soil in 6- to 8-inch layers and compact each layer. Large amounts of loose fill can push the wall out of position.
These mistakes are easy to avoid when you slow down during the foundation, drainage, and first-course steps. Careful preparation helps your wall stay strong for years.
Wrapping Up
Soil pressure, poor drainage, and a weak base are the three forces that bring retaining walls down, and they all have straightforward solutions when you address them early.
Learning how to build a retaining wall correctly means understanding what you can’t see: water movement, soil pressure, and settling. A compacted base, proper drainage, and staggered blocks help it last for decades.
Take the time to plan, follow local code requirements, and never rush the first course. Ready to get started? Grab your stakes and string line; your slope is waiting.
Frequently Asked Questions
Can I Build a Retaining Wall Myself?
Yes, for walls under 3–4 feet. Above that threshold, most jurisdictions require a permit and often engineered drawings. The physical work is manageable for a competent DIYer; the limiting factors are height, soil conditions, and local code, not skill alone. Check your municipality’s rules before starting.
What Is the 1/3 Rule for Retaining Walls?
The 1/3 rule means one-third of the wall’s total height should be buried below grade as the base course. For a finished wall 3 feet tall, the base sits 12 inches underground. This buried portion stabilizes the wall against the forward pressure exerted by retained soil above ground.
Does a 3-Foot Retaining Wall Need Drainage?
Yes. Any wall retaining soil needs drainage, regardless of height. Saturated soil generates hydrostatic pressure that can exceed a wall’s load capacity even when the wall is otherwise well-built. A perforated pipe in gravel behind the first course prevents water from accumulating and pushing the wall forward.
How Deep Should a Retaining Wall Be in The Ground?
At minimum, one-third of the wall’s total height should be buried below grade. For a 3-foot wall, that’s about 12 inches underground. This buried depth is what resists the horizontal pressure of retained soil. Skimp on it and the wall has nothing pushing back against the load, it will eventually lean or fail.
