Most custom homebuilders fixate on finish – the perfect tile, fixtures, or drywall from top to bottom. What these well-meaning builders forget (often until a burst pipe puts the whole operation on pause) is that none of it can be maintained. Designing for maintainability doesn’t sacrifice good looks, but rather insulates the homeowner from the full cost of turnover. It’s the difference between a 20-year-old home looking brand new, and a set of walls that have to be peeled back every decade or so.
Do Not Bury Your MEP in Inaccessible Drywall
Your mechanical, plumbing, and electrical systems – referred to collectively as MEP – are the beating heart of your home, and among the most intensively serviced throughout the life of the house.
The single biggest renovation planning mistake made in custom builds involves burying this critical infrastructure inside inaccessible drywall with no provision for service. This is a disaster waiting to happen that looks brilliant on move-in day and like a crime scene five years later when a technician has to cut exploratory holes in the drywall to find a deluge from a leaky joint or failed damper.
Valves, junctions, clean-outs, and filters all have periodic service intervals. Fixtures and connections need replacing every ten to fifteen years even if the line work beneath them is in good condition. If every one of those events requires drywall repairs and repainting, you’re not just paying for an occasional inconvenience. You’re paying for an ongoing series of expensive disruptions that add up over time
The solution is simple and inexpensive if you can plan for it ahead of time during the design phase before the drywall goes up.
Build the Chases and Plan the Wet Walls

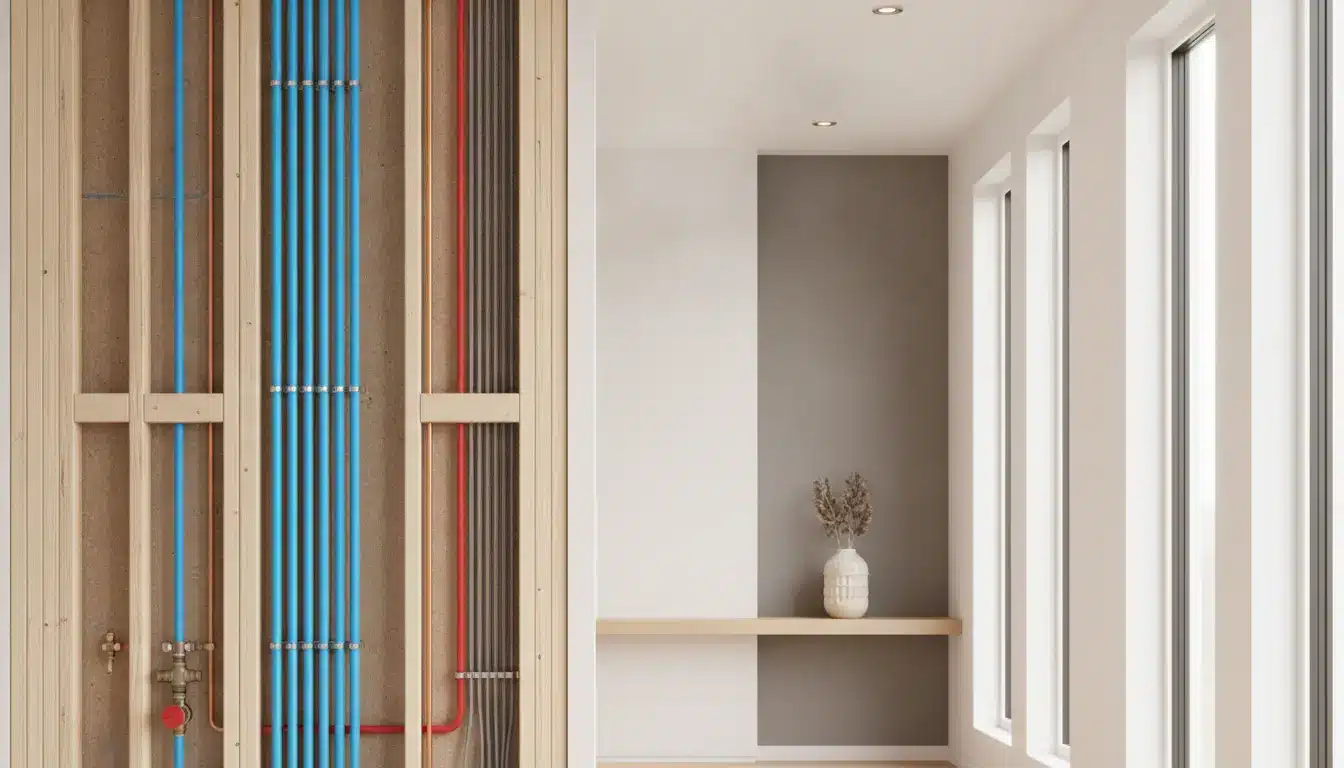

One good decision you can make at the architectural design stage involves stacking your wet walls (those with water supply and drain lines behind them) one atop the other and having them run over/under their counterparts on upper and lower stories. One way to do that is to put the second-floor bathroom directly over the kitchen below and put the laundry room on the same wall as the main mechanical chase. This reduces the number of walls in any given framing plan while putting everything on a single plane, making them simpler to access for future repairs.
Future-Proof Your Home With Conduit Runs Now
Wiring is one area in which the disparity between the cost of doing something right and doing it cheap is brutally apparent. If you run an oversized PVC conduit from your attic to your basement or crawl space during the rough-in phase, you’ve spent maybe $50 on something that will pay enormous dividends in convenience and value later. If you have to run fiber optics, coaxial cables, or home security wiring to a new location after the drywall goes up, that’s going to cost much more in both materials and labor.
Structured wiring runs should always be part of the design conversation for custom homes, not an afterthought. Always install the conduit, label it, and leave pull strings in place so that whatever comes next can be pulled through with minimal effort. The technology you need in fifteen years will almost certainly not exist today, but the conduits will be there for whatever comes next.
Similar considerations apply to your smart home automation center. These central hubs which power the “brain” of your home can benefit enormously from a dedicated location with proper ventilation, not some inaccessible closet behind the drywall in your hallway
Strategic Access Point Integration
This is the place where many custom homebuilders make their biggest renovation planning mistakes and biggest shortcuts, and also where they can reap the biggest rewards. Access panels themselves seem like a compromise between clean modern aesthetics and fully integrated practical serviceability, but those who plan them intelligently and put them in predictable, accessible locations make them well worth the time and expense.
Make sure to specify panels at every location where you’ll have to open up a wall in the future to access anything that requires periodic servicing. Valves and controls for pressure balances, clean-outs, and dampers should all be placed so that access panels can be mounted at convenient places within closets, utility rooms and along wet walls. Mount them in places where they can be painted to look like their surroundings so they’re not an eyesore when they’re not in use.
Access Panels Direct carries a number of panels ideally suited for residential applications where appearances are important, but the location still needs to provide good access to whatever is behind them. The idea is that the homeowner is unaware of their existence until they need them, and able to open them without assistance from a professional
Those same principles apply to things like your access to a shower valve in a wet-tile wall. An appropriately sized panel on the back wall of the linen closet provides a much better alternative to having to open up the adjacent wall for service.
PEX Manifolds for Advanced Plumbing Systems
Conventional branch-tee plumbing throws a single supply line out to a location and utilizes a tee fitting to divide it between two outlets with other tees added downstream to add additional fixtures. It’s a simple and inexpensive setup that serves many DIYers well, but when a connection fails or proves to have poor flow characteristics, you have to shut off water to a portion of your house, if not your whole system, to address the problem

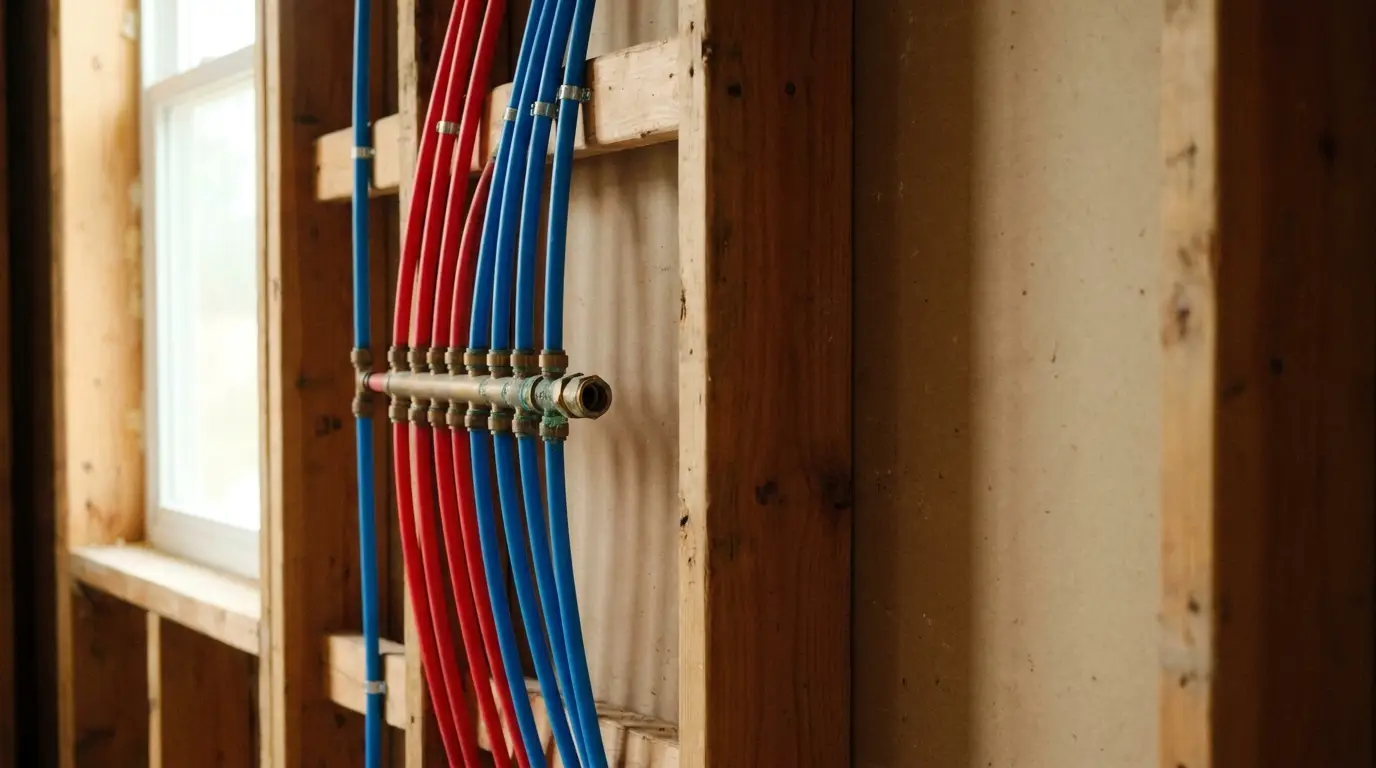

The PEX manifold method to plumbing takes a different tack in which a supply line is brought to a central PEX manifold and individual lines are taken off of it to serve each fixture independently. A manifold isolation valve is used on each fixture line to allow for its individual servicing without affecting the rest of the system. If you need your bathroom faucet serviced, all you have to do for the short term is shut off the isolation valve on that line to stop its flow entirely while work is being performed.
It’s an upgrade that makes major repairs much simpler and less invasive, but even a homeowner with basic skills can learn to use manifold isolation valves to perform basic maintenance and repairs without the help of a professional plumber
HVAC Location With Adequate Service Clearance
HVAC equipment is typically the largest single contributor to utility costs in any home, and the systems themselves are among the most intensively maintained mechanical systems in the house. Air filters have to be replaced, coils professionally serviced, dampers adjusted, and eventually the air handler itself replaced due to mechanical failures
It’s not uncommon for a HVAC technician to be seen on their hands or knees in a crawlspace or partially-decked attic with blown insulation. Air handlers, HRVs, and whole-home filtration equipment should instead be placed in conditioned utility spaces large enough to allow for easy service with proper lighting, a floor drain, and actual service clearance.
Service clearance is about much more than just code compliance with building officials. It’s also about making sure that the work space is large enough to actually allow a working professional with all their equipment to be comfortable while they are making repairs to your system. Common renovation planning mistakes in this area tend to involve cutting down on the square footage of a mechanical closet by adding cabinetry or window seats while still claiming to meet code requirements. Similar considerations apply to large-scale equipment such as your water heater. Just because a given appliance has a minimum square-foot clearance in all directions doesn’t mean that it won’t be inaccessible to future repair technicians who have to replace it if it ever fails. Think critically and in three dimensions about your equipment choices so that you don’t limit its ability to be serviced later.
Plenums and dampers should always be designed with future access in mind as well. If you have to crawl into an unfinished basement to manually adjust the damper on your furnace, you’re going to be much less likely to do it when you really need to.
Material Considerations and Exterior Durability
While most custom homebuilders fixate on the interior maintenance and renovation planning schedule, the materials on the exterior of the house can have just as significant an impact on a future owner’s bottom line. Wood siding, pressure-treated deck boards, and asphalt shingles all look nice until they fail, at which point the labor to remove and replace them is often just as expensive as the materials themselves.
Fiber cement siding has a longer painting interval, better water resistance, and eliminates the annual sealing schedule required to keep wood from rotting. Composite decking doesn’t require staining or sealing at all, while metal roofing is slightly less expensive than one might expect for something with a much longer service life than asphalt.
When considering materials on a custom build, the true cost isn’t just what you pay for them or have them installed. It also includes every hour spent on maintenance, repainting cycles, and replacements. Thinking about materials in those terms can provide a much more realistic view of value.
Integrate Leak Detection With Moisture Monitoring During Rough-Ins
Modern advances in leak detection technology now allow homeowners and their contractors to prevent expensive water damage from going unchecked. Hardwired leak sensors can be installed around washing machine connections, at the base of water heaters, and along dishwasher lines to alert homeowners to the presence of moisture so that action can be taken before the situation worsens
Hardwired sensors and shut-off valves are much easier and less expensive to install during the rough-in stage before insulation and drywall go up. It is possible to retrofit them into an existing structure, but it’s often much more labor-intensive and disruptive to do so. It’s a decision that has to be made during the design planning phase, not an upgrade you can add on later when you’re putting together your smart home wish list.
Proper planning and access point placement can create a moisture response system that serves as a diligent watchman, always looking out and ready to act if anything should go wrong. A custom home that is a pain to maintain is not a custom home fit for the long term. The inaccessible MEP systems, poorly located air handlers, and branch-tee plumbing that required shutting off an entire side of the house to replace a single fixture all add up to serious costs down the line. By planning for maintainability ahead of time at little or no additional expense, you insulate the future owner from those costs and provide them with a home of lasting value for years to come.
